Automated irrigation control
FarmSolutions has an integrated solution to automated values and control. Using pressure sensors, flowmeters, and valve control FarmSolutions has created a simple yet powerful combination to help optimize irrigation needs on farms and ranches. Our innovative solution uses trusted partners to create the best irrigation control solution.
Available Component Options
Valves
Presure Sensors
Flow Meters
Choosing the right configuration options.

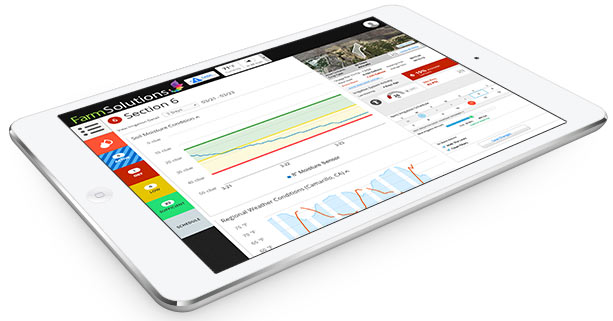

Your FarmSolutions team is here to help you monitor, control, and optimize your irrigation. Whether your goal is just to monitor irrigation activity to precision control FarmSolutions has the method to make it possible.

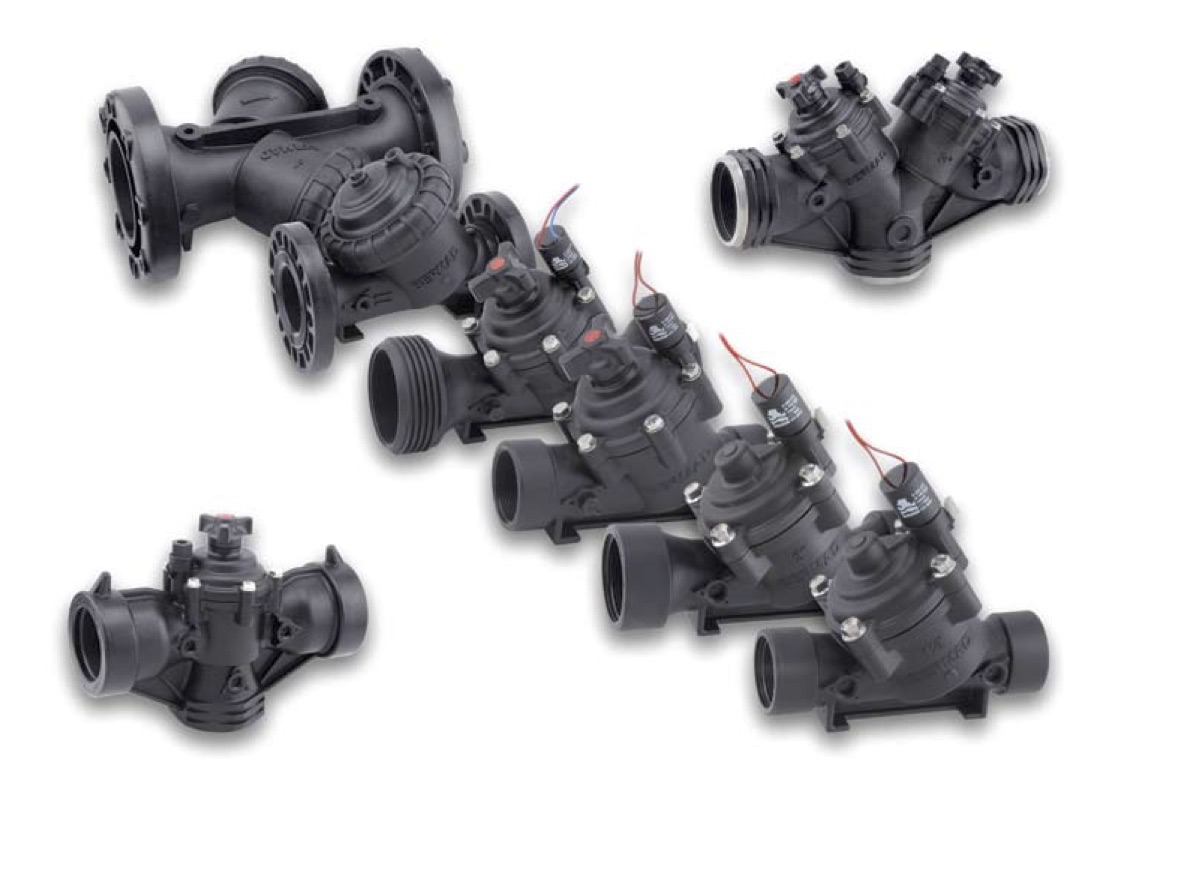

Burmad 100 Series – hY Flow High Performance Valves
The BERMAD IR-100 hYflow basic model diaphragm actuated, hydraulically operated valve is at the leading edge of control valve design. It combines simple and reliable construction with superior performance, while at the same time being virtually free of the typical limitations associated with standard control valves.
BERMAD’s automatic water control valves are designed for vertical or horizontal installation and are available in sizes of:
2”, 2”L, 21/2”, 3”, 3”L, 4” & 6” DN: 40, 50, 50L, 65, 80, 80L, 100 & 150.
The IR-100 hYflow model, made from industrial durable glass filled nylon, is engineered to meet rough service conditions with high chemical and cavitation resistance.
The hYflow ‘Y’ valve body design includes a full bore seat with unobstructed flow path, free of any in-line ribs, supporting cage, or shafts.
Its unitized Flexible Super Travel (FST) diaphragm and guided plug provide a significantly ‘look through’ passage from end to end resulting in ultra-high flow capacity with minimal pressure loss.
- Features
- Durable industrial grade valve design and construction uses glass-filled Nylon material to meet rough service conditions.
- Ultra-high flow capacity with minimal pressure loss.
- Designed for service on a wide range of pressure and flow conditions, from dripping to maximum flow.
- Simple design with few parts guarantees easy in-line inspection and service.
- Positive guided valve plug provides accurate motion and smooth regulation. Avoids chattering and slamming closed.
- Versatile end connections allow mix of different sizes and connection types.
- Articulated flange connections isolate the valve from line bending and pressure stresses
- Sizes
- 1 1/2” (Female Threaded) DN40
- 2” (Male or Female Threaded) DN50
- 2”L (Female Threaded) DN50L
- 2 1/2” (Male Threaded) DN65
- 3” (Female Threaded, Flanged, Grooved, Horn or Cemented) DN80
- 3”L (Female Threaded, Flanged, Grooved or Cemented) DN80L
- 4” (Flanged, Grooved or Cemented) DN100
- 6” (Flanged or Grooved) DN150

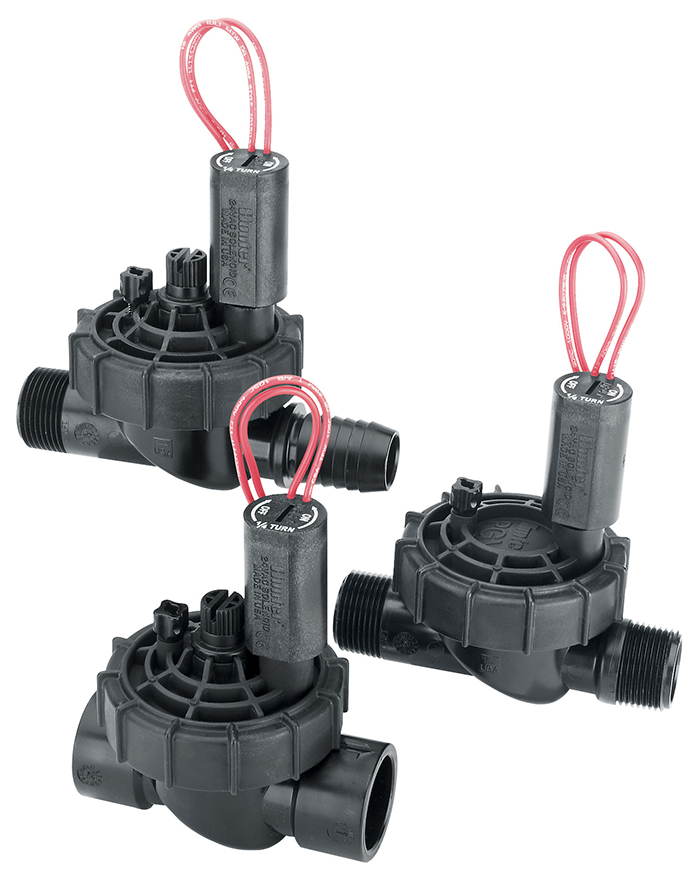

Hunter PGV 1" Valve
With enough durability to handle the rigors of most residential and light commercial sites, the PGV is available in an array of configurations. For smaller landscape applications, the PGV is available in four 1" body configurations: angle, globe, male x male, or male x barb design. In turn, each model is available in either a flow control or non-flow control version.
- Features
- Application (PGV-100, PGV-101): Residential/light commercial
- Sizes: 1"
- External and internal manual bleed allows quick and easy “at the valve” activation
- Double-beaded diaphragm seal design for superior leak-free performance
- DC latching solenoids enable Hunter’s battery-powered controllers
- Captive bonnet bolts provide hassle-free valve maintenance
- Low flow capability allows use of Hunter’s micro-irrigation products
- Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
- Temperature rating: 150° F
- Warranty period: 2 years
- Solenoid Specs
- 24 VAC solenoid
- – 350 mA inrush, 190 mA holding, 60 Hz (North America)
- – 370 mA inrush, 210 mA holding, 50 Hz (most international locations)

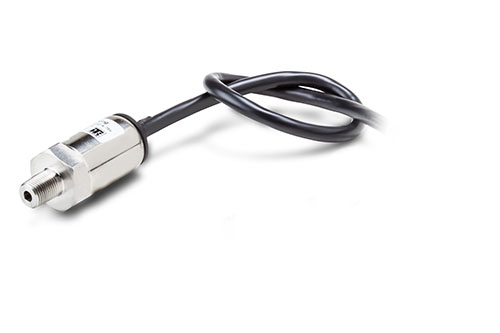

SSI P51 – MediaSensor
The (P51) MediaSensor™ family of bulk micro-machined, absolute, sealed and gage pressure sensors are for both harsh and benign media with superior accuracy. The MediaSensor™ family comes in a choice of three pressure sensing type conventions: absolute, vented gauge or sealed gauge.
These compact and robust sensors, with a wide variety of fittings, measure pressures from 3 PSI to 7,500 PSI and are well suited for a variety of automotive, industrial and commercial applications.
Absolute sensors
Absolute sensors (PSIA) measure pressure relative to a sealed chamber at a perfect vacuum, which remains unchanged regardless of ambient pressure conditions. PSIA sensors are used where vacuum, or both vacuum and positive pressure measurements are needed in an application.
Gauge sensors
Gauge sensors (PSIG) measure pressure relative to ambient pressure rather than a chamber sealed at a perfect vacuum. PSIG sensors are used for lower pressure applications where measurement in a vacuum in not required or provided.

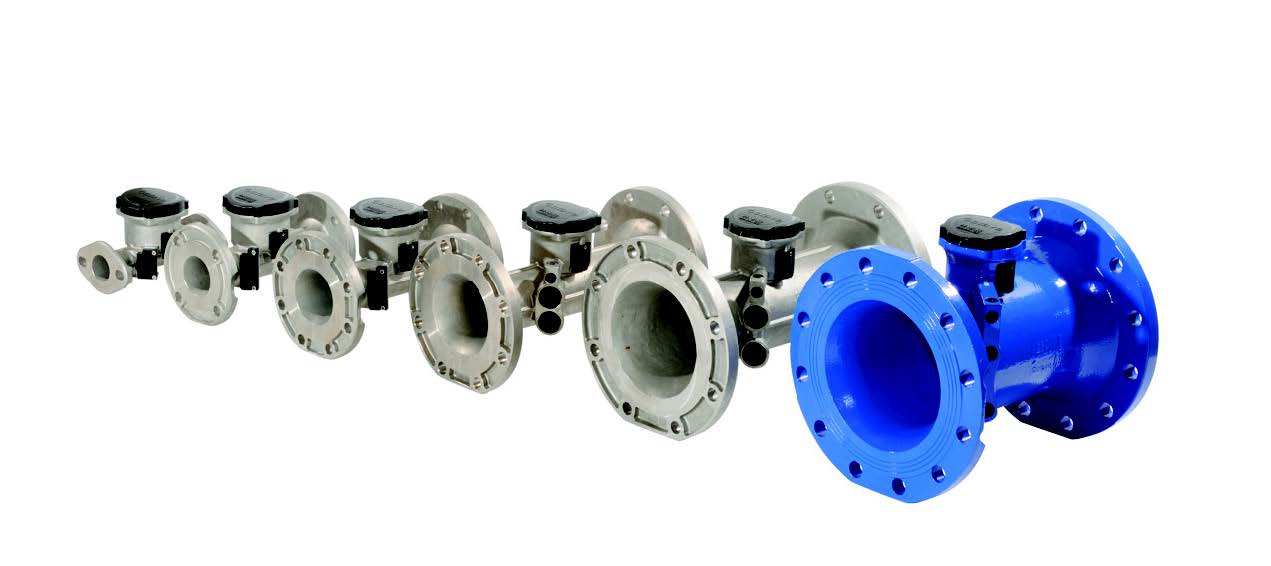

MasterMeter P51 – MediaSensor
Octavebrings thelatestinultrasonicmetering technology to Commercial/Industrial (C&I) water meters and puts precise measurement where the real flows exist. An excellent alternative to mechanical compound, single-jet, floating ball, fire-service type and turbine meters, Octave excels at maintaining sustained accuracy for the life of the meter while providing smart AMR capabilities.
Features & Benefits
- Flow sensitivity starting as low as 1/16 GPM
- Grade 316 Stainless Steel or Epoxy Coated Ductile Iron body design provides full compliance with ANSI/NSF 372 (AB1953 or NSF61G)
- No moving parts. Minimal flow intrusion. Enduring accuracy.
- No required strainer
- Wide beam ultrasonic measurement sensors for high accuracy and reliable operation.
- Industry standard communication protocol for integration with most third-party AMR/AMI systems
- Active leak, theft, backflow, meter damage/tamper, rate of flow, and battery life indication
- Detailed LCD display features immediate reporting and visual indicators for 8 critical conditions
- Ruggedized NEMA 6P/IP-68+ construction; fully submersible design
- Designed to meet standards for both North American and International C&I water meters
- Optional flow measurements; Forward Only, Net Volume or Alternating Display (Forward and Reverse Consumption displayed separately)
Technical Specifications:
Working Pressure - 175 PSI
Liquid Temperature - 32° - 122 °F
Metrological Characteristics - Meets ANSI/AWWA Standard C750- 10, ISO 4064 rev. 2005
Configuration - Compact-Display built into unit
Power Source - 2 x D Size Lithium Thionyl Chloride batteries - 10 year warranted life time
Environmental Protection - NEMA 6P+ (IP68+), Ambient operation temp. -13 °F / +131 °F for the display
Display Units - Multi line 9 digit LCD (ProgrammableUSG, Cubic Feet, Cubic Meters, Acre Feet for volume and GPM, Lt/s, or M³/h for rate of flow)
Output - Programmable single/dual open drain digital pulse, dry contact digital pulse, encoder OR externally powered loop 4-20 mA

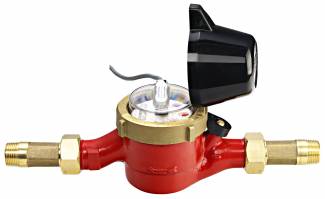

Netafim M and WMR Water Meters
M and WMR Water Meters are the industry's smallest water meters. They offer the best cost, performance and long life. The M utilizes the multi-jet principle assuring an equally distributed load on the impeller minimizing wear and maintaining accuracy. The WMR contains an in-line axial turbine which allows foreign matter to pass through the meter without clogging. Wide clearances in the measuring chamber and negligible area of contact between static and moving parts are the main reasons for the high reliability of this design even in hard water. Available in 3/4", 1", 1 1/2" and 2" sizes.
Features & Benefits
- Industry's smallest water meters provide ±2% accuracy over a wide range of flows.
- Magnetically driven sealed registers are stainless steel encapsulated and guaranteed not to accumulate moisture or fog.
- 'M' Water Meters utilize the multi-jet principle assuring an equally distributed load on the impeller minimizing wear and maintaining accuracy.
- 'M' Water Meters have only one moving part, the impeller, is in contact with the water for minimum wear and the utmost reliability.
- 'WMR' Water Meters contain an in-line axial turbine which allows foreign matter to pass through the meter without clogging.
- Wide clearances in the measuring chamber provide full pipe flow measurements and high reliability.
